Micro-CT evaluation of historical human skulls presenting signs of syphilitic infection

Syphilis is a chronic, multistage sexually transmitted disease caused by the gram-negative spirochete Treponema pallidum [1]. Humans are the organism’s only natural reservoir and transmission occurs through direct contact with body fluids or sores of an infected individual, characteristically in sexual activities [2]. Untreated syphilis progresses in three stages: Spreading from localized primary lesions of the skin, T. pallidum induces a second phase of disease after 9–12 weeks. Thereafter, the microorganism persists in a latent stage for months or years. Dissemination throughout the whole body manifests as a tertiary stage, which is characterized by cardiovascular, neurologic, and deep cutaneous manifestations [3]. As a known complication of tertiary syphilis, destructive bone lesions occur but like other end-stage symptoms, have rarely been observed in their microstructural changes since the introduction of penicillin treatment in the 1940s.

Today, the general diagnosis of syphilis is based on clinical examination, serological tests and visualization of T. pallidum by dark-field microscopy or immunofluorescence. [4]. With respect to bone lesions that may appear as periosteal reactions in earlier manifestation stages, conventional X‑ray is widely used as a noninvasive tool of clinical investigation but solely provides two-dimensional macroscopic images. Histological analysis facilitates more detailed exploration but is laborious and destructive; hence, in clinical practice it is applied only in rare cases of diagnostic uncertainty. Medical computed tomography (CT) noninvasively delivers three-dimensional volume data; however, the resolution for studies of microstructures is limited. Thus, the micro-computed tomography (µ-CT) approach is the method of choice to cope with the requirement of getting three-dimensional images of bone architecture in high resolution and without any destruction of samples [5‐7]. Using this technology, we aimed to shed light on the range of variation of microstructural changes at the calvaria of individuals who were infected by syphilis.

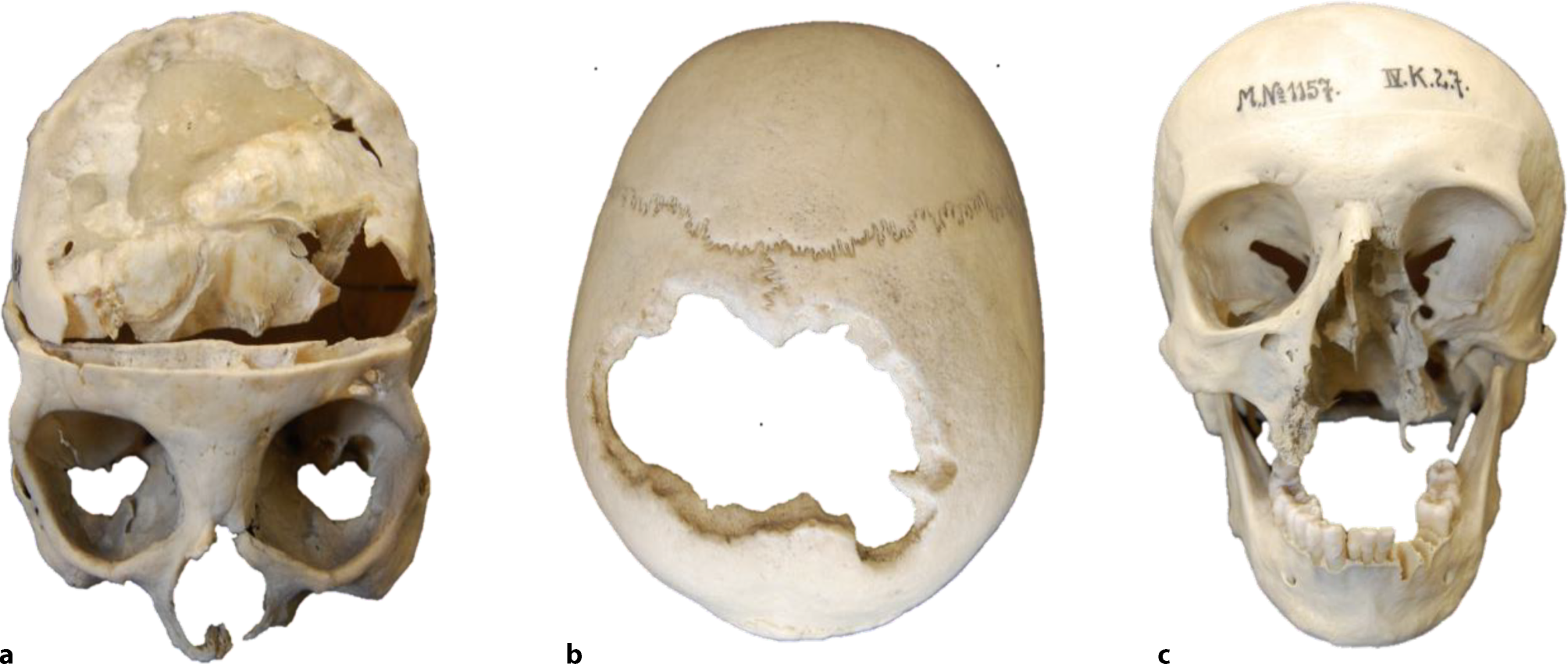

In accordance with previous macroscopic reports [9, 14‐25] and the duration of the infection our investigations revealed a great variation of pathological changes (Table 2, Figs. 1, 2, 3, 4 and 5). All affected samples showed at least one perforation (Fig. 5). The viscerocranium was affected in 80%, especially the hard palate and nasal septum. The neurocranium was involved in 50% of the individuals with syphilitic infection (Table 3).

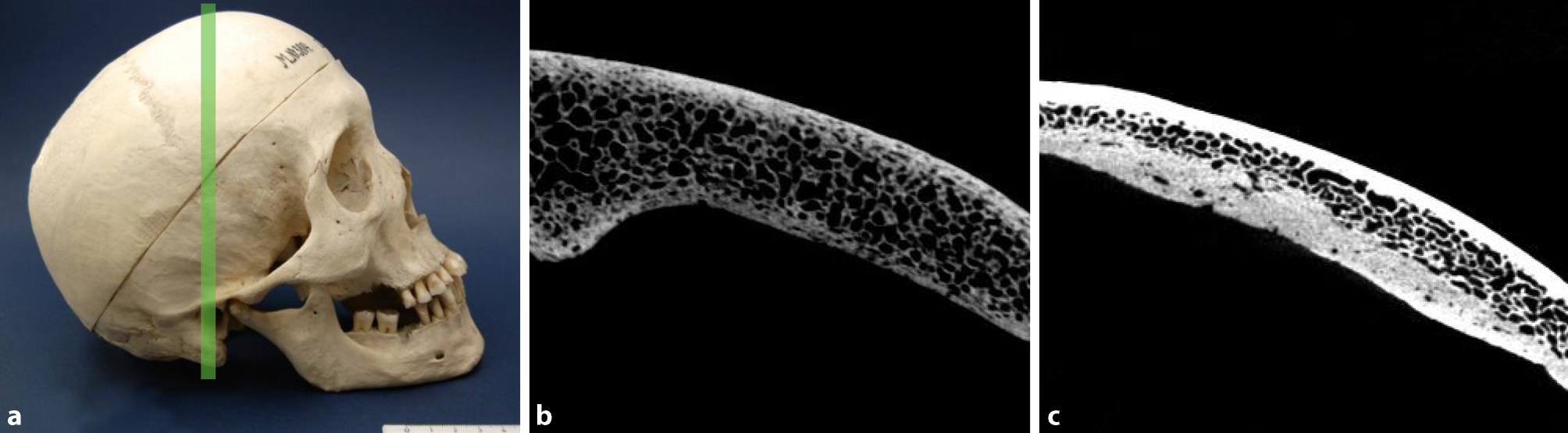

The analysis and the following comparison showed that in all affected individuals suffering from syphilis, increased porosity occurred (Table 2). For example, in the skull of a 52-year-old male presented in Fig. 1, this feature was pronounced in both the external and internal tables of the frontal bone. Fig. 1c depicts a skull of 66-year-old male lacking any infectious lesions used as a control.

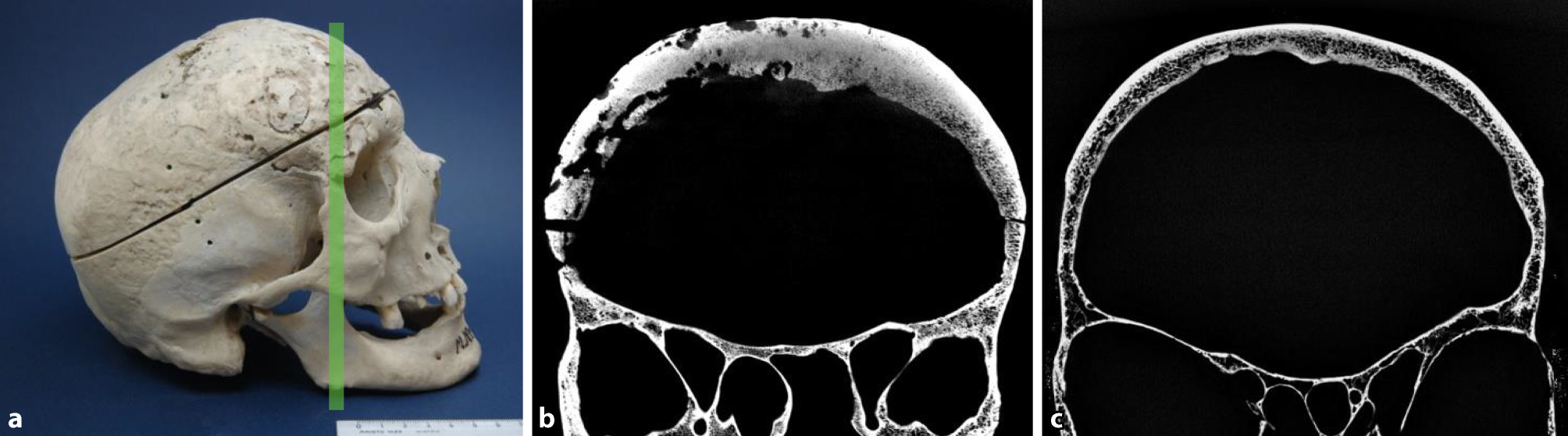

Sclerotic reorganization was observed in 80% of the syphilitic skull bones. Fig. 2a, b shows a skull of a 43-year-old male showing a massive sclerotic reorganization in comparison to a 76-year-old male control skull (Fig. 2c). The internal and external tables, separated by the diploe, did not show any alterations and are clearly recognizable.

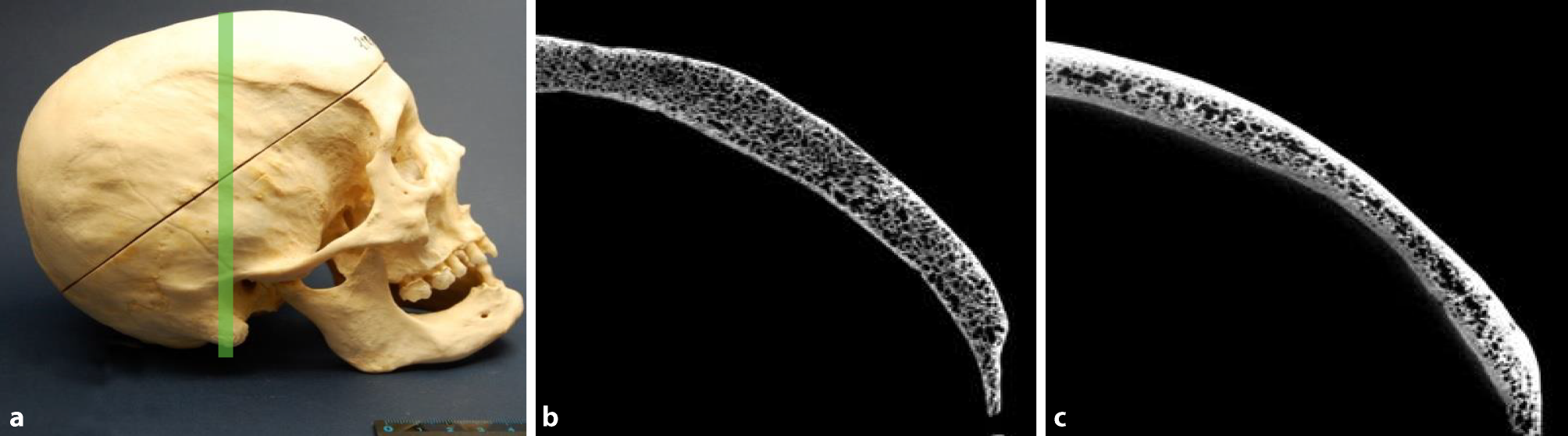

Our findings revealed that cortical thinning occurred in 75% of the syphilitic skulls. Fig. 3a, b shows a syphilitic skull of a 64-year-old female. The inner and outer tables are thin and their structure is irregular. Fig. 3c shows a skull of a 72-year-old woman without signs of cortical thinning.

Cortical loss appeared in 80% of infected cases (Table 2). Fig. 4 shows the high level of cortical loss in a skull of a 40-year-old man in comparison to that of a 69-year-old healthy male. Loss of one table was present in over 80% of the 16 specimens, while the skull of 2 males and 1 female showed loss of both the internal and the external tables. Interestingly, in about 75% of the 12 skulls that were affected by the loss of one cortical layer, the internal table was affected. A loss of the external table was found to be present only in one male and two females.

Hyperostosis frontalis interna was incidentally observed in the skulls of two females (recorded age at death 82 and 90 years, respectively) that were included in the control sample of noninfected individuals.

In this study for the first time a large number of skulls showing features of tertiary syphilis were analyzed by µ-CT. Our data reveal that extensive bone destruction and cortical porosity are the most prominent micromorphological features in syphilitic bone disease. Rühli et al. [26] compared the utility of µ-CT scanning to traditional histological sectioning for various osseous pathologies including one specimen of bone syphilis. They found that both techniques were of equal diagnostic value in general, which supports our methodological approach. Furthermore, Rühli et al. showed that changes of bone surfaces can be better visualized using µ-CT 3D images. In line with these findings, our study confirmed microcomputed tomography to provide detailed 3D images in a fast and nondestructive manner [28]. The aforementioned study [26] is the only comparative investigation of syphilitic bone using µ-CT. The authors showed cortical thickening of the skull bone, internally and externally, possibly a sign of bony remodeling. In contrast, our study demonstrated cortical porosity and bone loss of both cortical layers. The finding of Rühli et al. [26] may possibly imply the administration of antibiotics, because their study is based on cranial bone samples that were collected in the first half of the twentieth century [27].

Bone homeostasis is regulated by a delicate balance between osteoblastic bone formation and osteoclastic bone resorption [29]. In this complex process, different proteins play a key role: receptor activator of NF-κB ligand (RANKL) is a protein expressed by osteoblasts. It regulates the activity (formation, function and survival) of osteoclasts and the resorption of bone by interacting with its receptor activator of NF-κB (RANK), which is found on the surface of osteoclasts. Osteoprotegerin, another protein secreted by osteoblasts, is a natural inhibitor of RANKL and plays a role in regulating bone resorption. Macrophages express a variety of inflammatory cytokines and chemokines, such as interleukin‑1 (IL-1), IL‑2, tumor necrosis factor (TNF)-alpha and prostaglandin E [30]. Prostaglandin (PG) E upregulates RANKL and stimulates osteoclast formation, leading to osteolysis. Tp92, one of the surface antigens of T. pallidum could also be responsible for osteoclastogenesis. Jun et al. [31] showed that Tp92 homologs stimulated various factors involved in inflammation and osteoclastogenesis, such as IL-1ß, TNF-alpha, IL‑6 and PGE 2. Remarkably, several contemporary case reports impressively underline the massive bone destructive potential of (untreated) syphilis [32‐39].

Beside extreme manifestations of osteoclast activity resulting in perforating defects the observed spectrum of osseous manifestations of syphilis also included cortical thinning and cortical osteoporosis. Perforating defects and cortical porosity was observed in all skulls and cortical thinning in three quarters of the skulls. Until now cortical osteoporosis has not been described in conjunction with syphilis. This finding also underlines the technical advantage of microcomputed tomography since the identification of cortical osteoporosis is beyond the resolution of conventional computed tomography or magnetic resonance imaging [32, 36]. Although cortical porosity is likely not specific for syphilis, this finding in conjunction with other features observed in our study could be helpful for the differential diagnosis of pathologies observed in human skeletal remains.

Not only osteoclasts but also osteoblast activities play an important role in the syphilitic remodeling process. Since syphilis is a relatively slowly developing disease, osteolytic destruction in many cases is followed by an osteoblastic reaction, which may lead to a pronounced thickening of the affected region [18]. As a likely manifestation of these osteoblastic reactions in our study sclerotic alterations were seen in the clear majority of cases (see Fig. 2b), i.e. in about 80% of the individuals.

Hyperostosis frontalis interna (HFI) involves the thickening of the frontal bone. It has been investigated by Western and Bekvalac [40] in historic female skeletal populations by microcomputed tomography. Consistent with our incident findings of HFI in two control skulls, Western and Bekvalac [40] showed that most cases of HFI are observed in older individuals.

There are some limitations that may influence our results. The documented diagnosis of syphilis in our 150-year-old skulls could neither be confirmed serologically nor microscopically, as we were limited to using macerated bones and nondestructive techniques. Furthermore, possible side effects of not documented mercurial treatment or iodine therapy cannot be ruled out. Nevertheless, due to our macroscopical evaluation with respect to the diagnostic criteria of syphilis proposed by Ortner [9] we could substantiate the selection of our samples. Lillie et al. [41] showed that there was significant reduction in cortical thickness with increasing age for females. This is in good agreement with our results. Our investigations showed that, even though the patients were younger than the controls, in the skulls of females suffering from syphilis both tables were significantly thinner than those of the control female samples.

Another important issue was the number of cases included in the given study. An extensive literature search yielded not a single comparable investigation. Therefore, for the planning of the study power calculations were not possible; however, in view of the sparsity of untreated syphilitic skulls, the descriptive nature of our study and lack of any similar works, we consider our results to be useful for others, particularly for researchers interested in palaeopathological subject matter.

Although the clinical manifestations of syphilis have changed over time, it is imperative that physicians are aware of the massive bone destructive potential of the disease.
